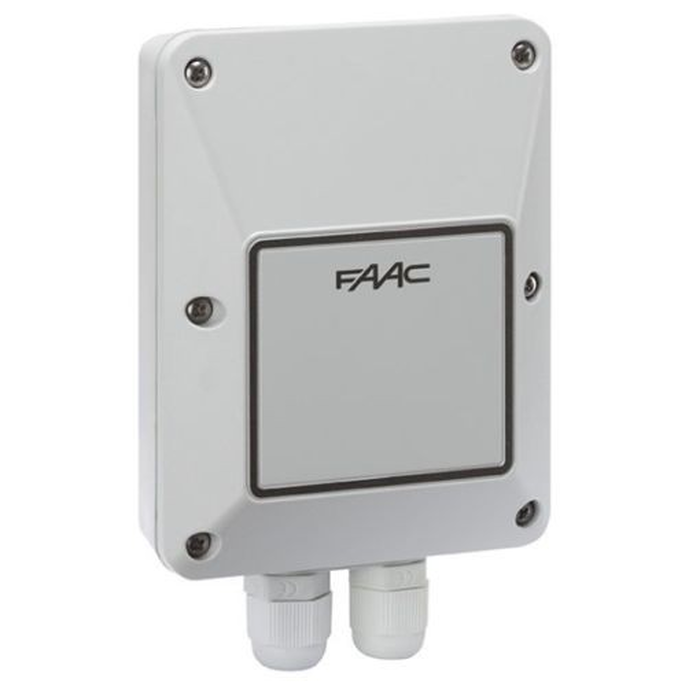

The FAAC XR S 868 receiver is used to receive transmissions from FAAC XT S 868 transmitters. It allows communication with up to 6 transmitters. In combination with the FAAC XT S 868 transmitters, it is a comprehensive solution for wireless status transmission of safety edges or other devices.
It is also equipped with 2 inputs enabling direct connection to two safety edges, both mechanical and resistive, and has a relay output signaling low battery status of the paired transmitters.
The receiver works both with FAAC control boards equipped with a BUS 2easy connector and with products from third-party manufacturers through relay outputs.
| Power supply | BUS 2easy (only FAAC control boards) 12-24V AC/DC |
|---|---|
| Maximal power consumption | 54 mA |
| Transmission frequency | 868 MHz |
| Number of supported transmitters | 6 |
| Output communication | - Relay - BUS 2easy (only FAAC control boards) |
| Maximal reaction time | 76 ms |
| Maximal number of wired inputs | 2 |
| Safety edge technology | - Mechanical (NC contact) - Resistive (8k2) |
| Protection rating | IP55 |
| Operating temperature | -20°C ÷ +55°C |
| Dimensions | 84 × 112 × 36.5 mm |
